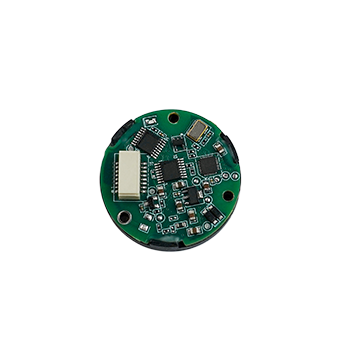

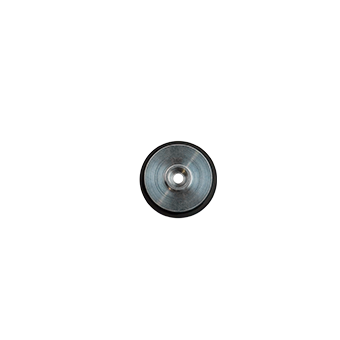

SROI35 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

Product characteristics

Product advantages

Ultra-thin design, integrated installation;

Shaft less connection, non-contact design, no wear;

Quick zeroing, zero position can be set at any position.

Technical specifications

System

Resolution	5000 C/T
Communication Specification	Pulse mode
Response Frequency	≤500kHz
Output Format	Line Driver

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	80mA
Differential Output Level	High level≥2.4V; Low level≤0.5V
Insulation Resistance	10MΩ
Edge Change Time	100ns

Environment

EMC Features	IEC61000-3
Operating Temperature	-20℃~85℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating	—（Motor Rear Case Protection）
Shock	Impact acceleration 980m/s² ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s² between 55~2000 Hz ; 2 hours per axial (XYZ)
