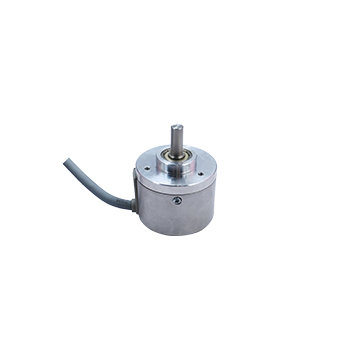

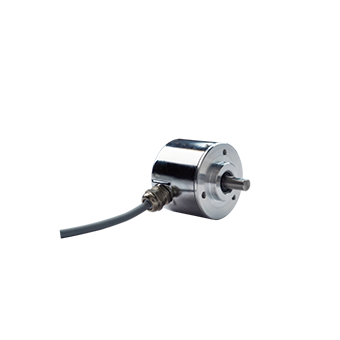

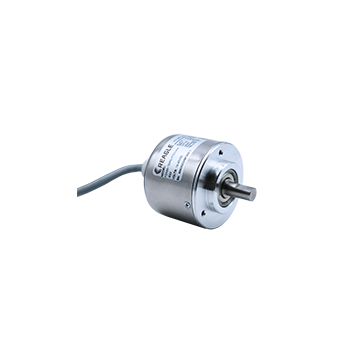

DMN40/50 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

Product characteristics

Product advantages

Up to 5000 pulses per revolution;

Compact, robust, and stable design;

Configurable number of lines.

Technical specifications

System

Outer Diameter	φ40/50mm

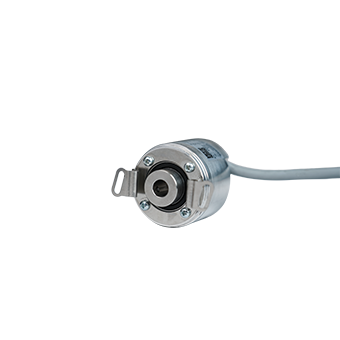

Shaft Diameter	Output shaft diameter φ 6 / 8 mm; Blind hole diameter φ 6 / 8 / 10 mm
Pulses per revolution	10-5000ppr(Configurable)
Operating Speed	DMN40:≤8000rpm; DMN50:≤3000rpm
Maximum response frequency	250kHz
Starting Torque	0.005NM

Electrical

Supply Voltage	5V±5%; 10-30V
Signal output method	Push-pull output, NPN collector open circuit output, Voltage output, Linear drive output, RS485

Environment

Temperature	Operating:-20℃~85℃ ; Storage:-25℃~85℃
Humidity	Operating:35~85% RH ; Storage:35~90% RH
IP Rating	IP 65
Shock	1,000m/s 2 , sweeping in the X, Y, Z directions, repeated 3 times.
Vibration	10 ~ 500 Hz, vertical amplitude of 2mm or 150m/s 2 , sweeping in the X, Y, Z directions for 11 minutes per sweep, repeated 3 times.
